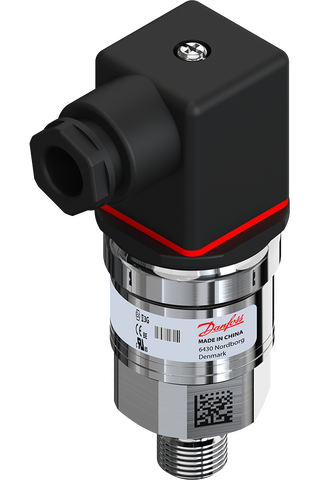

Pressure transmitter MBS 3050-2731-A1GB04-2 - 060G3894

Producer:
Danfoss
Product code: 060G3894
  • Model:
    MBS 3050
  • Output signal:
    4 - 20 mA
  • Pressure measuring range (min) [bar]:
    0.00
  • Pressure measuring range (max) [bar]:
    50.00
Ask

Data

Technical data

Output signal
4 - 20 mA
Power supply
12V DC, 24V DC
Pressure measuring range (min)
[bar]
0.00
Pressure measuring range (max)
[bar]
50.00
Overload pressure max
[bar]
300
Pressure accuracy max
[%]
1
Pressure reference
Sealed Gauge pressure
Protection rating
IP65

Electrical connections

Electrical connection type
Angular connector
Electrical connection size
Pg 9
Electric connection - contact
Pin 1
Electrical connection - common contact
Pin 2
Additional info
Puls snubber

Pressure connection

Pressure connection type
G thread (external)
Pressure connection diameter
1/4"

Downloads

Technical Documentation, [898.2 KB]
Danfoss
04-2023
UK
Technical Documentation, [933.8 KB]
Danfoss
04-2023
EN
Catalogue, [1.3 MB]
Danfoss
02-2023
UK
Catalogue, [95.1 MB]
Danfoss
02-2019
EN
Technical Documentation, [3.7 MB]
Danfoss
12-2013
RU
Technical Documentation, UK, Danfoss, 04-2023, [898.2 KB]
Technical Documentation, EN, Danfoss, 04-2023, [933.8 KB]
Catalogue, UK, Danfoss, 02-2023, [1.3 MB]
Catalogue, EN, Danfoss, 02-2019, [95.1 MB]
Technical Documentation, RU, Danfoss, 12-2013, [3.7 MB]
